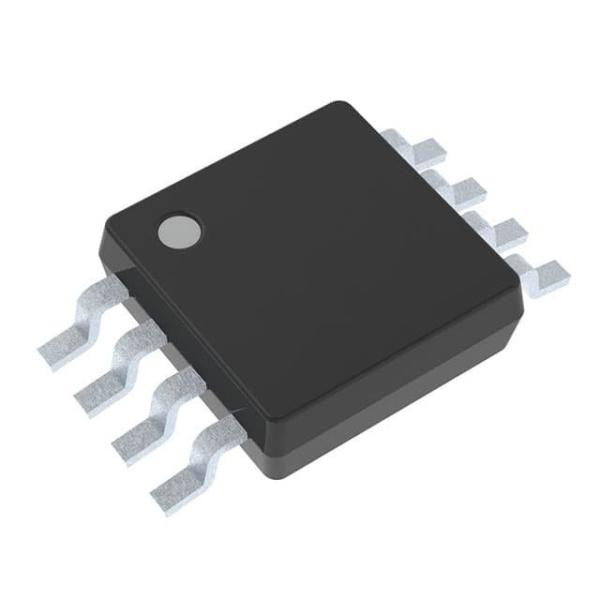

    TLE4208G BRUSH DC MOTOR CONTROLLER, 1A Infineon Technologies

    Ask Lasest Price
    Brand Name : Infineon Technologies
    Model Number : TLE4208G
    Price : Based on current price
    Payment Terms : T/T
    Supply Ability : In stock
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    TLE4208G BRUSH DC MOTOR CONTROLLER, 1A Infineon Technologies

    TLE4208G BRUSH DC MOTOR CONTROLLER, 1A Infineon Technologies

    Product Details


    Description

    The TLE 4208 is a fully protected Quad-Half-Bridge-Driver designed specially for automotive and industrial motion control applications. The part is built using the Siemens bipolar high voltage power technology DOPL.
    In a cascade configuration up to three actuators (DC motors) can be connected between the four half-bridges. These four half-bridges are configured as 2 dual-half-bridges, which are supplied and controlled separately. Operation modes forward (cw), reverse (ccw), brake and high impedance are invoked from a standard interface.

    Features

    • Driver for up to 3 motors
    • Delivers up to 0.8 A continuous
    • Optimized for DC motor management applications
    • Very low current consumption
    in stand-by (Inhibit) mode
    • Low saturation voltage; typ.1.2 V total @ 25 °C; 0.4 A
    • Output protected against short circuit
    • Error flag diagnosis
    • Overvoltage lockout and diagnosis
    • Undervoltage lockout
    • CMOS/TTL compatible inputs with hysteresis
    • No crossover current
    • Internal clamp diodes
    • Overtemperature protection with hysteresis and diagnosis
    • Enhanced power P-DSO-Package

    Specifications

    AttributeAttribute Value
    ManufacturerInfineon
    Product CategoryMotor Drivers and Controllers
    Case-PackageSOIC
    MountSurface Mount
    Number-of-Pins28
    InterfaceParallel
    Logic-FunctionAND
    Max-Operating-Temperature150 °C
    Max-Supply-Voltage18 V
    Min-Operating-Temperature-40 °C
    Number-of-Channels4
    Number-of-Outputs2
    Operating-Supply-Voltage18 V
    Output-Current800 mA
    PackagingDigi-Reel®
    Halogen-FreeHalogen Free
    Lead-FreeLead Free
    Radiation-HardeningNo
    RoHSCompliant

    Functional compatible component

    Form,Package,Functional compatible component

    Manufacturer Part#DescriptionManufacturerCompare
    TLE4208G
    Signal Circuits
    Brush DC Motor Controller, 1A, BIPolar, PDSO28, GREEN, PLASTIC, SOP-28Infineon Technologies AGTLE4208G vs TLE4208G

    Descriptions

    Motor / Motion / Ignition Controllers & Drivers AUTOMOTIVE MOTOR DRIVER
