Brand Name : | Texas Instruments |

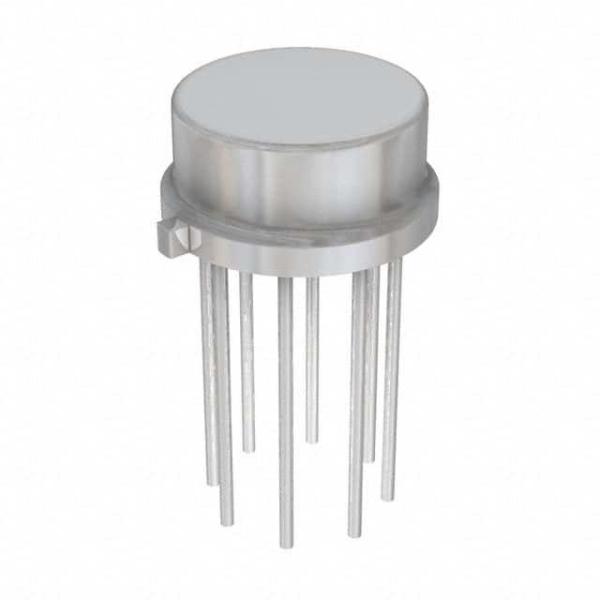

Model Number : | LM1558H/NOPB |
Price : | Based on current price |
Payment Terms : | T/T |
Supply Ability : | In stock |
Delivery Time : | 3-5 work days |
Attribute | Attribute Value |
---|---|
Manufacturer | Texas Instruments |
Product Category | Instrumentation Amplifier |
Manufacturer | Texas Instruments |
Product-Category | Operational Amplifiers - Op Amps |
RoHS | Details |
Mounting-Style | Through Hole |
Package-Case | TO-99-8 |
Supply-Voltage-Max | 44 V |
Number-of-Channels | 2 Channel |
GBP-Gain-Bandwidth-Product | 1 MHz |
SR-Slew-Rate | 0.5 V/us |
CMRR-Common-Mode-Rejection-Ratio | 70 dB |
Ib-Input-Bias-Current | 1.5 uA at +/- 15 V |
Vos-Input-Offset-Voltage | 5 mV |
Supply-Voltage-Min | 6 V |
Operating-Supply-Current | 5 mA |
Maximum-Operating-Temperature | + 125 C |
Minimum-Operating-Temperature | - 55 C |
Shutdown | No Shutdown |
Series | LM1558 |
Packaging | Bulk |
Brand | Texas Instruments |
en-Input-Voltage-Noise-Density | 30 nV/sqrt Hz |
In-Input-Noise-Current-Density | 0.15 pA/sqrt Hz |
Maximum-Dual-Supply-Voltage | +/- 22 V |
Minimum-Dual-Supply-Voltage | +/- 3 V |
Product | Operational Amplifiers |
PSRR-Power-Supply-Rejection-Ratio | 77 dB |
Technology | Bipolar |
![]() |
