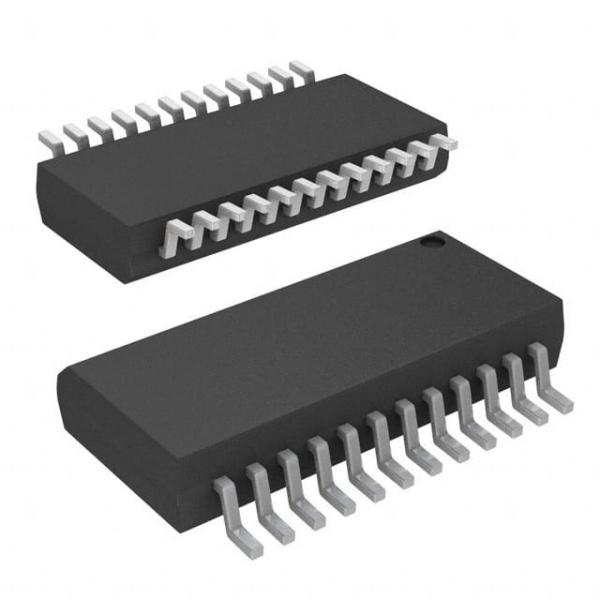

    EL5375IUZ-T7 IC OPAMP DIFF 3 CIRCUIT 24QSOP Renesas Electronics America Inc

    Ask Lasest Price
    Brand Name : Renesas Electronics America Inc
    Model Number : EL5375IUZ-T7
    Price : Based on current price
    Payment Terms : T/T
    Supply Ability : In stock
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    EL5375IUZ-T7 IC OPAMP DIFF 3 CIRCUIT 24QSOP Renesas Electronics America Inc

    Product Details

    The EL5175 and EL5375 are single and triple high bandwidth amplifiers designed to extract the difference signal from noisy environments. They are primarily targeted for applications such as receiving signals from twisted-pair lines or any application where common mode noise injection is likely to occur.


    Features

    • Differential input range ±2.3V
    • 550MHz 3dB bandwidth
    • 900V/µs slew rate
    • 60mA maximum output current
    • Single 5V or dual ±5V supplies
    • Low power, 9.6mA per channel
    • Pb-free available (RoHS compliant)

    Applications

    • Twisted-pair receivers
    • Differential line receivers
    • VGA over twisted-pair
    • Differential to single-ended amplification
    • Reception of analog signals in a noisy environment

    Specifications

    AttributeAttribute Value
    ManufacturerRenesas
    Product CategoryInstrumentation Amplifier
    SeriesEL5375
    ProductDifferential Amplifiers
    PackagingReel
    Unit-Weight0.009016 oz
    Mounting-StyleSMD/SMT
    Number-of-Channels3 Channel
    Amplifier-TypeDriver
    Maximum Operating Temperature+ 85 C
    Operating temperature range- 40 C
    Operating-Supply-Current33 mA
    Supply-Voltage-Max11 V
    Supply-Voltage-Min4.75 V
    Package-CaseQSOP-24
    Ib-Input-Bias-Current25 uA
    Vos-Input-Offset-Voltage30 mV
    PSRR-Power-Supply-Rejection-Ratio45 dB
    GBP-Gain-Bandwidth-Product200 MHz
    Gain-V-V1 V/V
    Maximum-Input-Resistance150 kOhms

    Descriptions

    Differential Amplifier 3 Circuit 24-QSOP
    SP Amp DIFF Line Receiver Amp Triple 卤5.5V/11V 24-Pin QSOP T/R
    Differential Amplifiers EL5375IUZ 500 MHZ TPL DIFF LINECVR
