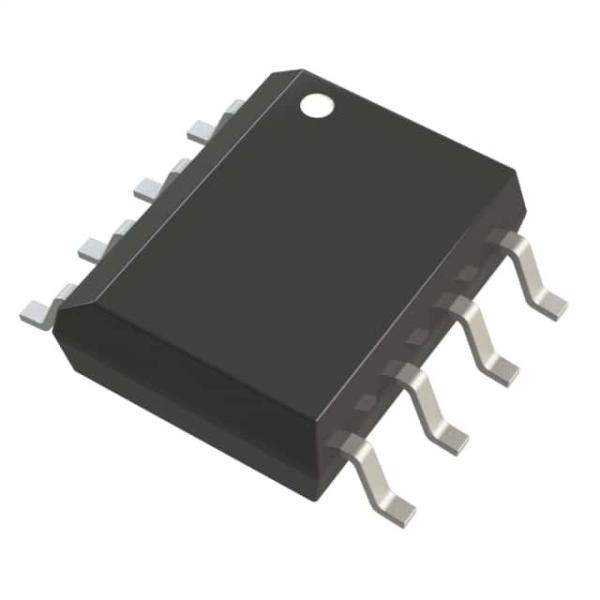

AZ34063UMTR-G1 IC REG BUCK BST ADJ 1.5A 8SOIC Diodes Incorporated

Product Details

General Description

The AZ34063 is a monolithic switching regulator control circuit containing the primary functions
required for DC-DC converters. This device consists of internal temperature compensated reference, voltage comparator, controlled duty cycle oscillator with active current limit circuit, driver and high current output switch. This device is specifically designed to be used in Step-Down, Step-Up and Voltage-Inverting applications with a minimum number of external com
ponents.
The AZ34063 is available in 2 packages: SOIC-8 and DIP-8.

Features

• Operation from 3.0V to 36V Input
• Low Standby Current
• Current Limiting
• Output Switch Current to 0.8A
• Output Voltage Adjustable
• Operation Frequency up to 65KHz (CT=330
• Precision 2% Reference

Applications
Battery Chargers
NICs/ Switches/ Hubs
ADSL Modems
Negative Voltage Power Supplies

Specifications

Attribute	Attribute Value
Manufacturer	Diodes Incorporated
Product Category	DC Switching Regulators
Series	AZ34063
Type	DC/DC Converters
Packaging	Alternate Packaging
Unit-Weight	0.002610 oz
Mounting-Style	SMD/SMT
Package-Case	8-SOIC (0.154", 3.90mm Width)
Operating-Temperature	-40°C ~ 85°C (TA)
Mounting-Type	Surface Mount
Output-Type	Adjustable
Function	Step-Up, Step-Down
Supplier-Device-Package	8-SOIC
Number-of-Outputs	1 Output
Topology	Buck, Boost
Frequency-Switching	Up to 180kHz
Current-Output	1.5A (Switch)
Output-Configuration	Positive or Negative
Output Voltage	1.25V
Voltage-Output-Max	36V
Synchronous-Rectifier	No
Voltage-Input-Min	3V
Voltage-Input-Max	36V
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Output-Voltage	1.25 V to 36 V
Operating-Supply-Current	4 mA
Input-Voltage-MAX	36 V
Output-Current	1.5 A
Switching-Frequency	180 kHz
Input-Voltage-MIN	3 V
Supply-Voltage-Min	3 V
Package-Case	SOIC-8

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
MC33063AVDG Power Circuits	Buck / Boost / Inverting Regulator, Switching, 1.5 A TA= -40°C to 125°C, SOIC-8 Narrow Body, 98-TUBE	ON Semiconductor	AZ34063UMTR-G1 vs MC33063AVDG
AZ34063UP-G1 Power Circuits	Switching Regulator, Voltage-mode, 1.5A, 45kHz Switching Freq-Max, PDIP8, GREEN, DIP-8	Diodes Incorporated	AZ34063UMTR-G1 vs AZ34063UP-G1
MC33063AQDRQ1 Power Circuits	Automotive Catalog 1.5-A Peak Boost/Buck/Inverting Switching Regulator 8-SOIC -40 to 125	Texas Instruments	AZ34063UMTR-G1 vs MC33063AQDRQ1
MC33063AVDR2 Power Circuits	1.5A SWITCHING REGULATOR, 100kHz SWITCHING FREQ-MAX, PDSO8, SOIC-8	Rochester Electronics LLC	AZ34063UMTR-G1 vs MC33063AVDR2
MC33063AVD Power Circuits	1.5A SWITCHING REGULATOR, 100kHz SWITCHING FREQ-MAX, PDSO8, SOIC-8	Rochester Electronics LLC	AZ34063UMTR-G1 vs MC33063AVD
AZ34063UM-G1 Power Circuits	Switching Regulator, Voltage-mode, 1.5A, 45kHz Switching Freq-Max, PDSO8, GREEN, SOIC-8	Diodes Incorporated	AZ34063UMTR-G1 vs AZ34063UM-G1
MC33063AVDR2G Power Circuits	Buck / Boost / Inverting Regulator, Switching, 1.5 A TA= -40°C to 125°C, SOIC-8 Narrow Body, 2500-REEL	ON Semiconductor	AZ34063UMTR-G1 vs MC33063AVDR2G

Descriptions

Buck, Boost Switching Regulator IC Positive or Negative Adjustable 1.25V 1 Output 1.5A (Switch) 8-SOIC (0.154", 3.90mm Width)

Conv DC-DC 3V to 36V Inv/Step Up/Step Down Single-Out 8-Pin SOIC T/R

Voltage Regulators - Switching Regulators 1.5A Step-Down/Up 3.0V to 36V 180kHz
