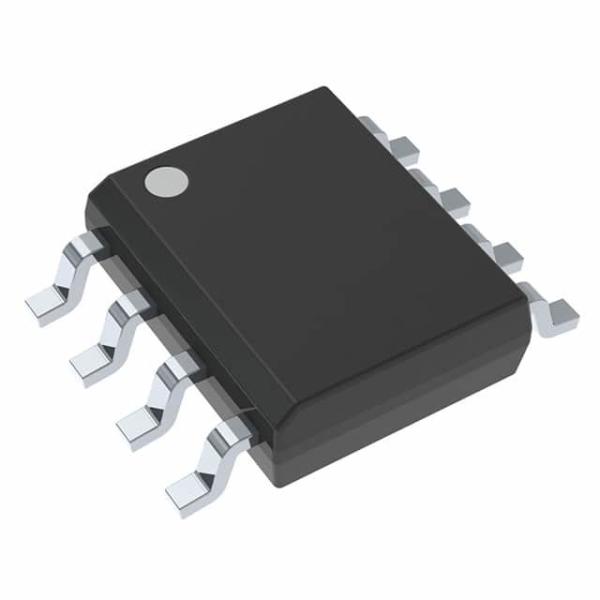

    LM358ADR IC OPAMP GP 2 CIRCUIT 8SOIC Texas Instruments

    Ask Lasest Price
    Brand Name : Texas Instruments
    Model Number : LM358ADR
    Price : Based on current price
    Payment Terms : T/T
    Supply Ability : In stock
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    LM358ADR IC OPAMP GP 2 CIRCUIT 8SOIC Texas Instruments

    Product Details

    Description

    These devices consist of two independent, high-gain, frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage.


    Features

    • Wide supply range of 3 V to 36 V (B, BA versions)
    • Quiescent current: 300 µA/ch (B, BA versions)
    • Unity-gain bandwidth of 1.2 MHz (B, BA versions)
    • Common-mode input voltage range includes ground, enabling direct sensing near ground
    • 2-mV input offset voltage max. at 25°C (BA version)
    • 3-mV input offset voltage max. at 25°C (A, B versions)
    • Internal RF and EMI filter (B, BA versions)
    • On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted. On all other products, production processing does not necessarily include testing of all parameters.


    Applications

    • Merchant network and server power supply units
    • Multi-function printers
    • Power supplies and mobile chargers
    • Motor control: AC induction, brushed DC, brushless DC, high-voltage, low-voltage, permanent magnet, and stepper motor
    • Desktop PC and motherboard
    • Indoor and outdoor air conditioners
    • Washers, dryers, and refrigerators
    • AC inverters, string inverters, central inverters, and voltage frequency drives
    • Uninterruptible power supplies
    • Electronic point-of-sale systems

    Specifications

    AttributeAttribute Value
    ManufacturerTexas Instruments
    Product CategoryInstrumentation Amplifier
    SeriesLM358A
    ProductOperational Amplifiers
    PackagingTube
    Unit-Weight0.002561 oz
    Mounting-StyleSMD/SMT
    TechnologyBipolar
    Number-of-Channels2 Channel
    Amplifier-TypeOperational Amplifier
    ShutdownNo Shutdown
    Maximum Operating Temperature+ 70 C
    Operating temperature range0 C
    Operating-Supply-Current1.2 mA
    Supply-Voltage-Max32 V
    Supply-Voltage-Min3 V
    Package-CaseSOIC-8
    Ib-Input-Bias-Current- 250 nA
    Vos-Input-Offset-Voltage3 mV
    PSRR-Power-Supply-Rejection-Ratio65 dB
    Vcm-Common-Mode-VoltageNegative Rail to Positive Rail - 1.5 V
    Output-Current-per-Channel30 mA
    CMRR-Common-Mode-Rejection-Ratio65 dB
    GBP-Gain-Bandwidth-Product700 kHz
    SR-Slew-Rate0.3 V/us
    en-Input-Voltage-Noise-Density40 nV/sqrt Hz
    Maximum-Dual-Supply-Voltage16 V
    Minimum-Dual-Supply-Voltage1.5 V

    Descriptions

    General Purpose Amplifier 2 Circuit 8-SOIC
    Op Amp Dual GP 卤16V/32V 8-Pin SOIC T/R
    Operational Amplifiers - Op Amps Dual Op Amp
