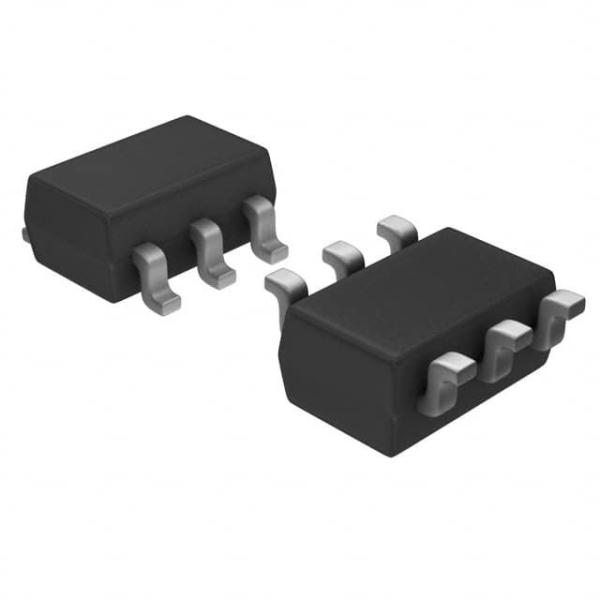

TPS3808G12DBVR IC SUPERVISOR 1 CHANNEL SOT23-6 Texas Instruments

Ask Lasest Price
Brand Name :	Texas Instruments
Model Number :	TPS3808G12DBVR
Price :	Based on current price
Payment Terms :	T/T
Supply Ability :	In stock
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

TPS3808G12DBVR IC SUPERVISOR 1 CHANNEL SOT23-6 Texas Instruments

Product Details

Description: The TPS3808G12DBVR is a simple reset/power-on reset integrated circuit (IC) supervisor from Texas Instruments. It is designed to monitor the power supply voltage and provide an active low reset signal when the voltage drops below a preset threshold.

Features:
• No chip enable
• SOT-23-6 package
• No battery backup
• Simple reset/power-on reset
• Adjustable/selectable reset timeout
• Operating temperature range of -40°C to 125°C (TJ)
• Voltage threshold of 1.12V
• 1 voltage monitoring relay
• Active low reset

Applications:
The TPS3808G12DBVR is suitable for a wide range of applications, including power supply monitoring, system reset, and power-on reset. It is ideal for use in consumer electronics, automotive, and industrial applications.

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Supervisors
Series	TPS3808G12
Type	Simple Reset/Power-On Reset
Packaging	Alternate Packaging
Unit-Weight	0.001270 oz
Mounting-Style	SMD/SMT
Package-Case	SOT-23-6
Operating-Temperature	-40°C ~ 125°C (TJ)
Mounting-Type	Surface Mount
Output-Type	Active Low Open Drain
Supplier-Device-Package	SOT-23-6
Output	Open Drain or Open Collector
Reset	Active Low
Voltage monitoring relays	1
Reset-Timeout	Adjustable/Selectable
Voltage-Threshold	1.12V
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Operating-Supply-Current	2.4 uA
Battery-Backup-Switching	No Backup
Supply-Voltage-Max	6.5 V
Supply-Voltage-Min	1.8 V
Package-Case	SOT-23-6
Watchdog-Timers	No Watchdog
Threshold-Voltage	1.12 V
Input Monitoring	1 Input
Manual-Reset	Manual Reset
Chip-Enable-Signals	No Chip Enable
Power-Fail-Detection	No
Reset-Delay-Time	300 ms
Overvoltage-Threshold	1.1256 V
Undervoltage-Threshold	1.1144 V

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
TPS3808G12DBVT Power Circuits	Low-quiescent current supervisor with programmable-delay and manual reset 6-SOT-23 -40 to 125	Texas Instruments	TPS3808G12DBVR vs TPS3808G12DBVT
TPS3808G12DBVTG4 Power Circuits	Low-quiescent current supervisor with programmable-delay and manual reset 6-SOT-23 -40 to 125	Texas Instruments	TPS3808G12DBVR vs TPS3808G12DBVTG4
TPS3808G12DBVRG4 Power Circuits	Low-quiescent current supervisor with programmable-delay and manual reset 6-SOT-23 -40 to 125	Texas Instruments	TPS3808G12DBVR vs TPS3808G12DBVRG4

Descriptions

Supervisor Open Drain or Open Collector 1 Channel SOT-23-6

Processor Supervisor 1.12V 1 Active Low/Open Drain 6-Pin SOT-23 T/R

Supervisory Circuits Programmable-Delay Supervisory
