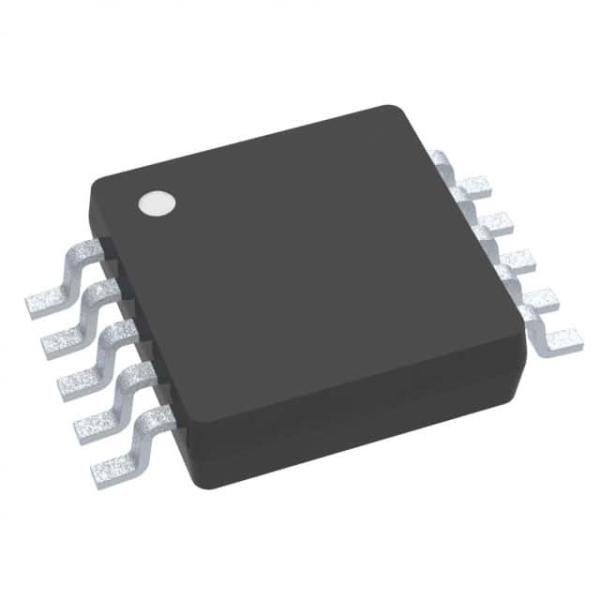

    TPS3613-01DGS IC SUPERVISOR 1 CHANNEL 10VSSOP Texas Instruments

    Ask Lasest Price
    Brand Name : Texas Instruments
    Model Number : TPS3613-01DGS
    Price : Based on current price
    Payment Terms : T/T
    Supply Ability : In stock
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    TPS3613-01DGS IC SUPERVISOR 1 CHANNEL 10VSSOP Texas Instruments

    Product Details

    The Texas Instruments TPS3613-01DGS is a high-performance supervisor circuit designed for battery backup applications. It features a wide operating temperature range of -40°C to 85°C (TA) and a minimum response time of 60 ms. The circuit is push-pull, totem pole active high/active low and comes in a 10-VSSOP package. It is adjustable/selectable and provides a reliable and efficient battery backup solution. The TPS3613-01DGS is ideal for applications that require a reliable and efficient battery backup solution.

    Specifications

    AttributeAttribute Value
    ManufacturerTexas Instruments
    Product CategorySupervisors
    SeriesTPS3613-01
    TypeBattery Backup Circuit
    PackagingTube Alternate Packaging
    Unit-Weight0.000663 oz
    Mounting-StyleSMD/SMT
    Package-Case10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
    Operating-Temperature-40°C ~ 85°C (TA)
    Mounting-TypeSurface Mount
    Output-TypePush-Pull
    Supplier-Device-Package10-VSSOP
    OutputPush-Pull, Totem Pole
    ResetActive High/Active Low
    Voltage monitoring relays1
    Reset-Timeout60 ms Minimum
    Voltage-ThresholdAdjustable/Selectable
    Pd-Power-Dissipation424 mW
    Maximum Operating Temperature+ 85 C
    Operating temperature range- 40 C
    Operating-Supply-Current20 uA
    Battery-Backup-SwitchingBackup
    Supply-Voltage-Max5.5 V
    Supply-Voltage-Min1.65 V
    Package-CaseVSSOP-10
    Watchdog-TimersNo Watchdog
    Threshold-VoltageAdjustable
    Input Monitoring1 Input
    Manual-ResetManual Reset
    Chip-Enable-SignalsChip Enable
    Power-Fail-DetectionNo
    Reset-Delay-Time100 ms
    Overvoltage-Threshold1.17 V
    Undervoltage-ThresholdAdjustable

    Functional compatible component

    Form,Package,Functional compatible component

    Manufacturer Part#DescriptionManufacturerCompare
    TPS3613-01DGSG4
    Power Circuits
    Adjustable Battery-Backup Supervisor for RAM Retention 10-VSSOP -40 to 85Texas InstrumentsTPS3613-01DGS vs TPS3613-01DGSG4
    TPS3613-01DGSRG4
    Power Circuits
    Adjustable Battery-Backup Supervisor for RAM Retention 10-VSSOP -40 to 85Texas InstrumentsTPS3613-01DGS vs TPS3613-01DGSRG4
    TPS3613-01DGSR
    Power Circuits
    Adjustable Battery-Backup Supervisor for RAM Retention 10-VSSOP -40 to 85Texas InstrumentsTPS3613-01DGS vs TPS3613-01DGSR

    Descriptions

    Processor Supervisor 1.15V 1 Active High/Active Low 10-Pin VSSOP Tube
    Supervisory Circuits Adj Battery-Backup for RAM Retention
