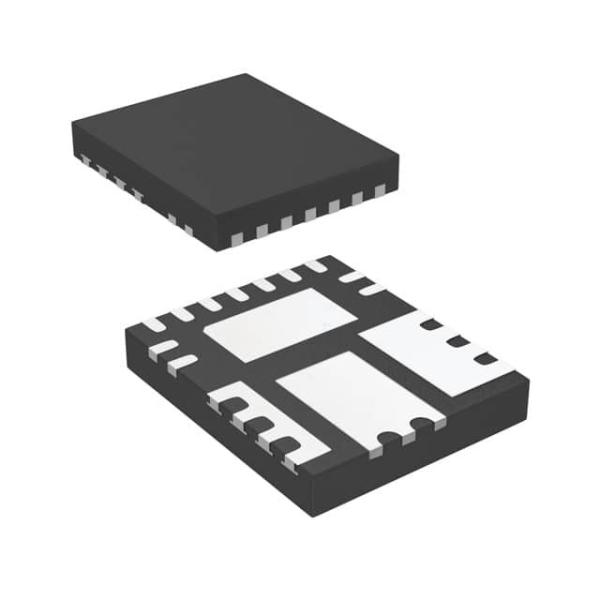

    IR3801AMTRPBF IC REG BUCK ADJUSTABLE 9A PQFN Infineon Technologies

    Ask Lasest Price
    Brand Name : Infineon Technologies
    Model Number : IR3801AMTRPBF
    Price : Based on current price
    Payment Terms : T/T
    Supply Ability : In stock
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    IR3801AMTRPBF IC REG BUCK ADJUSTABLE 9A PQFN Infineon Technologies

    Product Details


    DESCRIPTION

    The IR3895 SupIRBuckTMis an easy‐to‐use, fully integrated and highly efficient DC/DC regulator. The onboard PWM controller and MOSFETs make IR3895 a space‐efficient solution, providing accurate power delivery.

    FEATURES

    • Single 5V to 21V application
    • Wide Input Voltage Range from 1.0V to 21V with external Vcc
    • Output Voltage Range: 0.5V to 0.86×Vin
    • Enhanced Line/Load Regulation with Feed‐Forward
    • Programmable Switching Frequency up to 1.5MHz
    • Internal Digital Soft‐Start/Soft‐Stop
    • Enable input with Voltage Monitoring Capability
    • Thermally Compensated Current Limit with robust hiccup mode over current protection
    • Smart internal LDO to improve light load and full load efficiency
    • External Synchronization with Smooth Clocking
    • Enhanced Pre‐Bias Start‐Up
    • Precision Reference Voltage (0.5V+/‐0.5%) with margining capability
    • Vp for Tracking Applications (source/sink capability ±16A)
    • Integrated MOSFET drivers and Bootstrap Diode
    • Thermal Shut Down
    • Programmable Power Good Output with tracking capability
    • Monotonic Start‐Up
    • Operating temp: ‐40oC < Tj < 125oC
    • Small Size: 5mm x 6mm PQFN
    • Lead‐free, Halogen‐free and RoHS Compliant

    APPLICATIONS

    • Netcom Applications
    • Embedded Telecom Systems
    • Server Applications
    • Storage Applications
    • Distributed Point of Load Power Architectures

    Specifications

    AttributeAttribute Value
    ManufacturerInfineon
    Product CategoryDC Switching Regulators
    SeriesSupIRBuck™
    PackagingAlternate Packaging
    Package-Case15-PowerVQFN
    Operating-Temperature-40°C ~ 125°C (TJ)
    Mounting-TypeSurface Mount
    Output-TypeAdjustable
    FunctionStep-Down
    Supplier-Device-PackagePQFN (5x6)
    Number-of-Outputs1 Output
    TopologyBuck
    Frequency-Switching300kHz
    Current-Output9A
    Output-ConfigurationPositive
    Output Voltage0.6V
    Voltage-Output-Max12V
    Synchronous-RectifierYes
    Voltage-Input-Min2.5V
    Voltage-Input-Max21V

    Descriptions

    Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 9A 15-PowerVQFN
    Conv DC-DC 2.5V to 21V Step Down Single-Out 0.6V to 12V 9A 14-Pin Power QFN EP T/R
