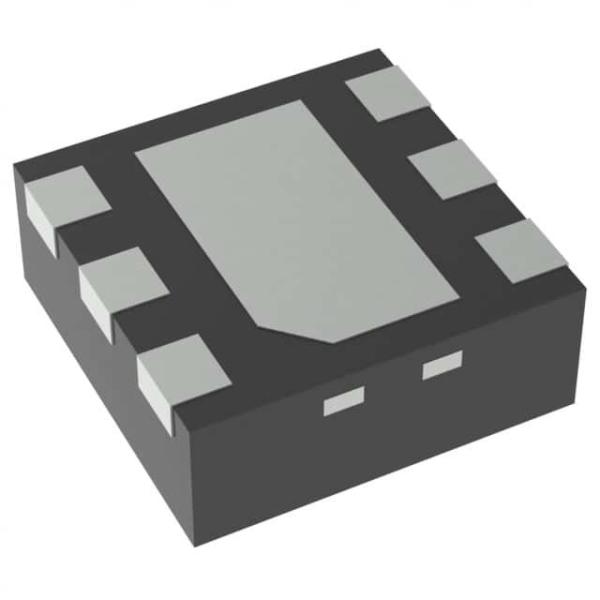

    TPS62240DRVR IC REG BUCK ADJ 300MA 6SON Texas Instruments

    Ask Lasest Price
    Brand Name : Texas Instruments
    Model Number : TPS62240DRVR
    Price : Based on current price
    Payment Terms : T/T
    Supply Ability : In stock
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    TPS62240DRVR IC REG BUCK ADJ 300MA 6SON Texas Instruments

    Product Details


    OPTO-ELECTRONIC SWITCH

    HOME ELECTRIC EQUIPMENT
    OA EQUIPMENT

    ● Small side view epoxy resin pakcage

    ● High sensitivity : TPS625 ••• IL =0.6mA (MIN.)
    TPS626 ••• IL =0.4mA (MIN.)
    ● Half value angle : θ½ = ±15° (TYP.)
    ● Visible light cut type (black package) : TPS626
    ● Optimum in combination with infrared LED TLN117 which has identical dimensions.

    Specifications

    AttributeAttribute Value
    ManufacturerTexas Instruments
    Product CategoryDC Switching Regulators
    SeriesTPS62240
    TypeDC/DC Converter
    PackagingAlternate Packaging
    Unit-Weight0.000342 oz
    Mounting-StyleSMD/SMT
    Operating-Temperature-Range- 40 C to + 85 C
    Package-Case6-WDFN Exposed Pad
    Operating-Temperature-40°C ~ 85°C (TA)
    Mounting-TypeSurface Mount
    Output-TypeAdjustable
    FunctionStep-Down
    Supplier-Device-Package6-SON (2x2)
    Number-of-Outputs1 Output
    TopologyBuck
    Frequency-Switching2.25MHz
    Current-Output300mA
    Output-ConfigurationPositive
    Output Voltage0.6V
    Voltage-Output-Max6V
    Synchronous-RectifierYes
    Voltage-Input-Min2V
    Voltage-Input-Max6V
    Maximum Operating Temperature+ 85 C
    Operating temperature range- 40 C
    Output-Voltage0.6 V to 6 V
    Input-Voltage2 V to 6 V
    Input-Voltage-MAX6 V
    Output-Current300 mA
    Switching-Frequency2.25 MHz
    Input-Voltage-MIN2 V
    Software Development KitTPS62240EVM-229
    Package-CaseWSON-6

    Functional compatible component

    Form,Package,Functional compatible component

    Manufacturer Part#DescriptionManufacturerCompare
    TPS62240DRVRG4
    Power Circuits
    2.25MHz 300mA Step-Down Converter in 2x2mm SON/TSOT23 Package 6-WSON -40 to 85Texas InstrumentsTPS62240DRVR vs TPS62240DRVRG4
    TPS62240DRVTG4
    Power Circuits
    2.25MHz 300mA Step-Down Converter in 2x2mm SON/TSOT23 Package 6-WSON -40 to 85Texas InstrumentsTPS62240DRVR vs TPS62240DRVTG4
    TPS62240DRVT
    Power Circuits
    2.25MHz 300mA Step-Down Converter in 2x2mm SON/TSOT23 Package 6-WSON -40 to 85Texas InstrumentsTPS62240DRVR vs TPS62240DRVT
    TPS62240DRV
    Power Circuits
    IC 0.3 A SWITCHING REGULATOR, 2500 kHz SWITCHING FREQ-MAX, PDSO6, 2 X 2 MM, 0.80 MM HEIGHT, PLASTIC, SON-6, Switching Regulator or ControllerTexas InstrumentsTPS62240DRVR vs TPS62240DRV

    Descriptions

    Conv DC-DC 2V to 6V Synchronous Step Down Single-Out 0.6V to 6V 0.3A 6-Pin WSON EP T/R
    Voltage Regulators - Switching Regulators 2.25MHz 300mA Step- Down Converter
