Brand Name : | Texas Instruments |

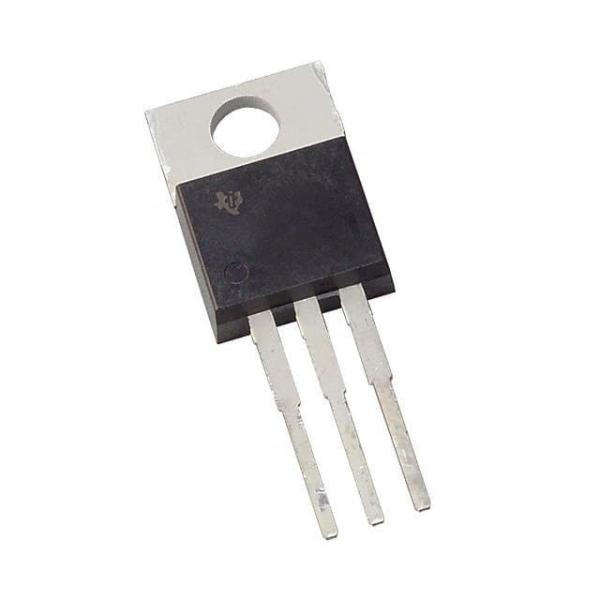

Model Number : | UCC283T-3G3 |
Price : | Based on current price |
Payment Terms : | T/T |
Supply Ability : | In stock |
Delivery Time : | 3-5 work days |
Attribute | Attribute Value |
---|---|
Manufacturer | Texas Instruments |
Product Category | Linear Voltage Regulators |
Series | UCC283-3 |
Packaging | Tube Alternate Packaging |
Unit-Weight | 0.211644 oz |
Mounting-Style | Through Hole |
Package-Case | TO-220-3 |
Operating-Temperature | -40°C ~ 85°C |
Mounting-Type | Through Hole |
Output-Type | Fixed |
Supplier-Device-Package | TO-220-3 |
Voltage-Input | Up to 9V |
Number-of-Outputs | 1 Output |
Current-Output | 3A |
Voltage-Output | 3.3V |
Regulator-Topology | Positive Fixed |
Voltage-Dropout-Typical | 0.5V @ 3A |
Number-of-Regulators | 1 Regulator |
Current-Limit-Min | 4A |
Maximum Operating Temperature | + 85 C |
Operating temperature range | - 40 C |
Output-Voltage | 3.3 V |
Input-Voltage-MAX | 9 V |
Output-Current | 3 A |
Input-Voltage-MIN | + 3.85 V |
Load-Regulation | 15 mV |
Package-Case | TO-220-3 |
Ib-Input-Bias-Current | 400 uA |
Quiescent-Current | 650 uA |
Dropout-Voltage | 0.5 V at 3 A |
Dropout-Voltage-Max | 1 V at 3 A |
Line-Regulation | 7 mV |
![]() |
