Description

The FAN1581, FAN1581-1.2, FAN1581-1.5, and FAN1581- 2.5 are ultra-low dropout regulators with 5A output current capability. These devices have been optimized for low voltage applications including VTT bus termination, where transient response and minimum input voltage are critical. The FAN1581 is ideal for low voltage microprocessor applications requiring a regulated output from 1.3V to 5.7V with a power input supply of 1.75V to 6.5V. The FAN1581-1.5 offers fixed 1.5V with 5A current capabilities for GTL+ bus VTT termination. Additionally, the FAN1581-1.2 offers fixed 1.2V output for CPU Bus termination. The FAN1581-2.5 offers fixed 2.5V with 5A current capability for logic IC operation and processors while minimizing the overall power dissipation.

Features

• Ultra Low dropout voltage, 0.4V typical at 5A
• 1.2V Versions available for GTL termination
• Remote sense operation
• Fast transient response
• Load regulation: 0.05% typical
• 0.5% typical initial accuracy
• On-chip thermal limiting

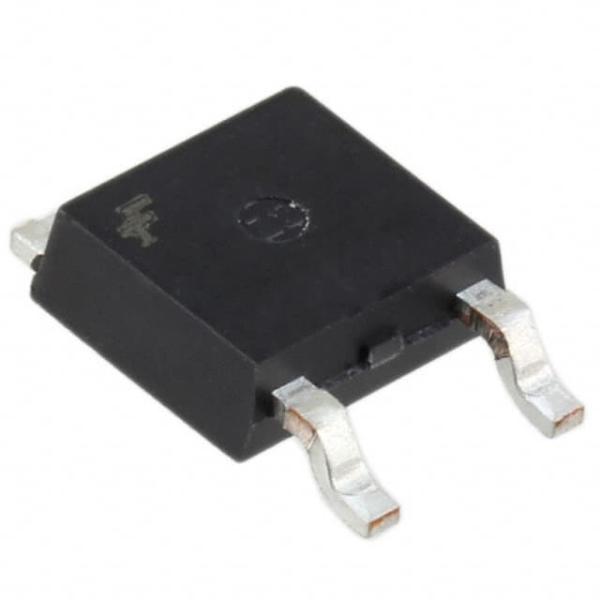

• TO-263, TO-252 and TO-220 packages

Applications

• Support of GTL+ bus supply
• Low voltage logic supply
• Embedded Processor supplies
• Split plane regulator
• 2.5V, and 1.8V Logic Families
• DDR Termination Supply
