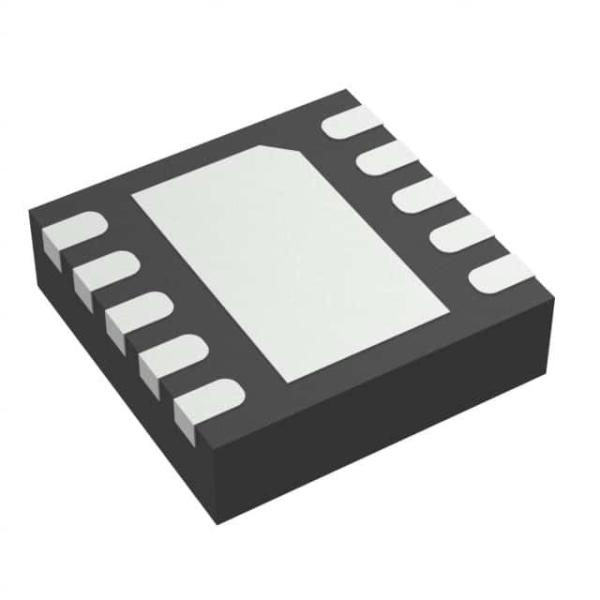

    TPS74801DRCR IC REG LIN POS ADJ 1.5A 10VSON Texas Instruments

    Ask Lasest Price
    Brand Name : Texas Instruments
    Model Number : TPS74801DRCR
    Price : Based on current price
    Payment Terms : T/T
    Supply Ability : In stock
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    TPS74801DRCR IC REG LIN POS ADJ 1.5A 10VSON Texas Instruments

    Product Details


    DESCRIPTION

    Single Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters.
    Packaged either in TO-220AC, ISOWATT220AC, TO-220FPAC or D2PAK, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

    FEATURES AND BENEFITS
    ■ Very small conduction losses
    ■ Negligible switching losses
    ■ Extremely fast switching
    ■ Insulated package: ISOWATT220AC, TO-220FPAC
    Insulating voltage = 2000V DC
    Capacitance = 12pF

    Specifications

    AttributeAttribute Value
    ManufacturerTexas Instruments
    Product CategoryLinear Voltage Regulators
    SeriesTPS74801
    PackagingAlternate Packaging
    Unit-Weight0.000921 oz
    Mounting-StyleSMD/SMT
    Package-Case10-VFDFN Exposed Pad
    Operating-Temperature-40°C ~ 125°C
    Mounting-TypeSurface Mount
    Output-TypeAdjustable
    Supplier-Device-Package10-VSON (3x3)
    Voltage-Input0.8 V ~ 5.5 V
    Number-of-Outputs1 Output
    Current-Output1.5A
    Voltage-Output0.8 V ~ 3.6 V
    Regulator-TopologyPositive Adjustable
    Voltage-Dropout-Typical0.06V @ 1.5A
    Number-of-Regulators1 Regulator
    Current-Limit-Min2A
    Pd-Power-Dissipation1.92 W
    Maximum Operating Temperature+ 125 C
    Operating temperature range- 40 C
    Output-Voltage796 mV to 3.6 V
    Input-Voltage-MAX5.5 V
    Output-Current1.5 A
    Input-Voltage-MIN+ 0.8 V
    Load-Regulation0.09 % / A
    Voltage-Regulation-Accuracy0.5 %
    Software Development KitTPS74801EVM-177
    Package-CaseVSON-10
    Ib-Input-Bias-Current1 mA
    Reference-Voltage0.804 V
    Dropout-Voltage0.06 V at 1500 mA
    Dropout-Voltage-Max165 mV at 1.5 A
    Line-Regulation0.03 % / V

    Functional compatible component

    Form,Package,Functional compatible component

    Manufacturer Part#DescriptionManufacturerCompare
    TPS74801TDRCRQ1
    Power Circuits
    Automotive single-output 1.5A LDO regulator, adjustable (0.8V to 3.6V), programmable soft start 10-VSON -40 to 105Texas InstrumentsTPS74801DRCR vs TPS74801TDRCRQ1
    TPS74801DRCRG4
    Power Circuits
    Single-output 1.5A LDO regulator, adjustable (0.8V to 3.6V), programmable soft start 10-VSON -40 to 125Texas InstrumentsTPS74801DRCR vs TPS74801DRCRG4
    NCP59748MN1ADJTBG
    Power Circuits
    LDO Regulator, 1.5 A, Ultra-Low Dropout, High PSRR, Low Noise, with Bias Rail, DFN10, 3x3, 0.5P, 3000-REELON SemiconductorTPS74801DRCR vs NCP59748MN1ADJTBG
    TPS74801DRCTG4
    Power Circuits
    Single-output 1.5A LDO regulator, adjustable (0.8V to 3.6V), programmable soft start 10-VSON -40 to 125Texas InstrumentsTPS74801DRCR vs TPS74801DRCTG4
    TPS74801DRCT
    Power Circuits
    Single-output 1.5A LDO regulator, adjustable (0.8V to 3.6V), programmable soft start 10-VSON -40 to 125Texas InstrumentsTPS74801DRCR vs TPS74801DRCT

    Descriptions

    Linear Voltage Regulator IC Positive Adjustable 1 Output 0.8 V ~ 3.6 V 1.5A 10-VSON (3x3)
    LDO Regulator Pos 0.796V to 3.6V 1.5A 10-Pin VSON EP T/R
    LDO Voltage Regulators 1.5A with Soft-Start
