Description

The Atmel® AVR® AT32UC3L0128/256 is a complete system-on-chip microcontroller based on the AVR32 UC RISC processor running at frequencies up to 50MHz. AVR32 UC is a high-performance 32-bit RISC microprocessor core, designed for cost-sensitive embedded applications, with particular emphasis on low power consumption, high code density, and high performance.
The processor implements a Memory Protection Unit (MPU) and a fast and flexible interrupt controller for supporting modern and real-time operating systems. The Secure Access Unit (SAU) is used together with the MPU to provide the required security and integrity.

Features

• High-performance, Low-power 32-bit Atmel® AVR® Microcontroller
– Compact Single-cycle RISC Instruction Set Including DSP Instructions
– Read-modify-write Instructions and Atomic Bit Manipulation
– Performance
• Up to 64DMIPS Running at 50MHz from Flash (1 Flash Wait State)
• Up to 36DMIPS Running at 25MHz from Flash (0 Flash Wait State)
– Memory Protection Unit (MPU)
• Secure Access Unit (SAU) providing User-defined Peripheral Protection
• picoPower® Technology for Ultra-low Power Consumption
• Multi-hierarchy Bus System
– High-performance Data Transfers on Separate Buses for Increased Performance
– 12 Peripheral DMA Channels Improve Speed for Peripheral Communication
• Internal High-speed Flash
– 256Kbytes and 128Kbytes Versions
– Single-cycle Access up to 25MHz
– FlashVault Technology Allows Pre-programmed Secure Library Support for End User Applications
– Prefetch Buffer Optimizing Instruction Execution at Maximum Speed
– 100,000 Write Cycles, 15-year Data Retention Capability
– Flash Security Locks and User-defined Configuration Area
• Internal High-speed SRAM, Single-cycle Access at Full Speed
– 32Kbytes
• Interrupt Controller (INTC)
– Autovectored Low-latency Interrupt Service with Programmable Priority
• External Interrupt Controller (EIC)
• Peripheral Event System for Direct Peripheral to Peripheral Communication
• System Functions
– Power and Clock Manager
– SleepWalking Power Saving Control
– Internal System RC Oscillator (RCSYS)
– 32 KHz Oscillator
– Multipurpose Oscillator, Phase Locked Loop (PLL), and Digital Frequency Locked Loop (DFLL)
• Windowed Watchdog Timer (WDT)
• Asynchronous Timer (AST) with Real-time Clock Capability
– Counter or Calendar Mode Supported
• Frequency Meter (FREQM) for Accurate Measuring of Clock Frequency
• Six 16-bit Timer/Counter (TC) Channels
– External Clock Inputs, PWM, Capture, and Various Counting Capabilities
• PWM Channels on All I/O Pins (PWMA)
– 8-bit PWM with a Source Clock up to 150MHz
• Four Universal Synchronous/Asynchronous Receiver/Transmitters (USART)
– Independent Baudrate Generator, Support for SPI
– Support for Hardware Handshaking
• One Master/Slave Serial Peripheral Interface (SPI) with Chip Select Signals
– Up to 15 SPI Slaves can be Addressed
• Two Master and Two Slave Two-wire Interfaces (TWI), 400kbit/s I2C-compatible
• One 8-channel Analog-to-digital Converter (ADC) with up to 12 Bits Resolution
– Internal Temperature Sensor
• Eight Analog Comparators (AC) with Optional Window Detection
• Capacitive Touch (CAT) Module
– Hardware-assisted Atmel® AVR® QTouch® and Atmel® AVR® QMatrix Touch Acquisition
– Supports QTouch and QMatrix Capture from Capacitive Touch Sensors
• QTouch Library Support
– Capacitive Touch Buttons, Sliders, and Wheels
– QTouch and QMatrix Acquisition
• On-chip Non-intrusive Debug System
– Nexus Class 2+, Runtime Control, Non-intrusive Data and Program Trace
– aWire Single-pin Programming Trace and Debug Interface Muxed with Reset Pin
– NanoTrace Provides Trace Capabilities through JTAG or aWire Interface

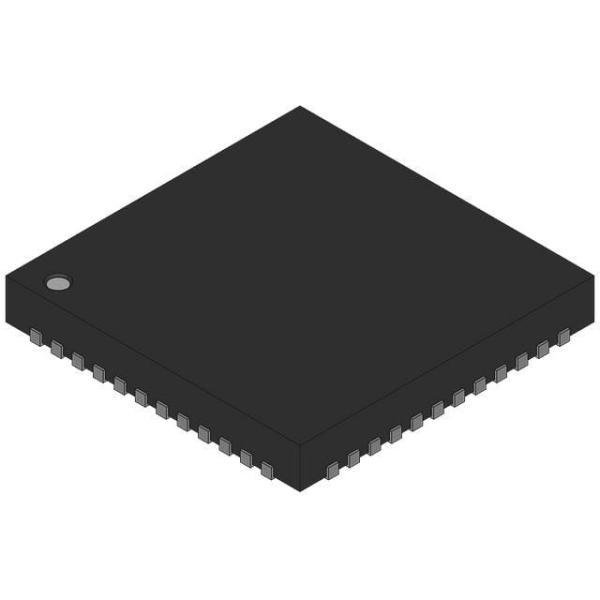

• 48-pin TQFP/QFN/TLLGA (36 GPIO Pins)
• Five High-drive I/O Pins
• Single 1.62-3.6 V Power Supply
