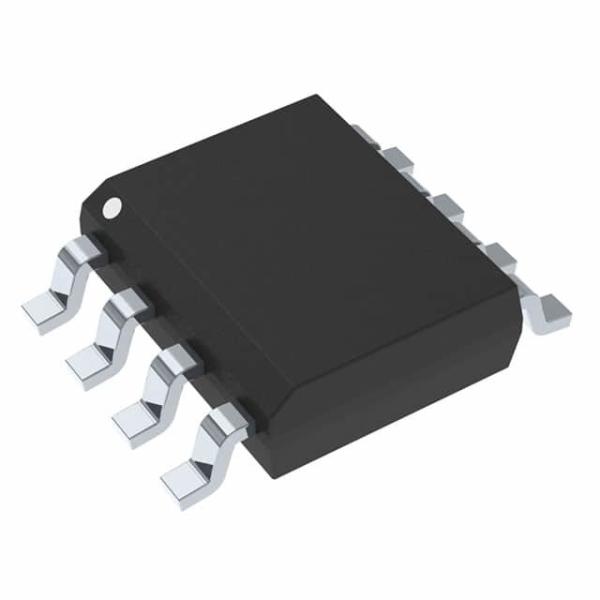

    MC79L12ACDR2G IC REG LINEAR -12V 100MA 8SOIC onsemi

    Ask Lasest Price
    Brand Name : onsemi
    Model Number : MC79L12ACDR2G
    Price : Based on current price
    Payment Terms : T/T
    Supply Ability : In stock
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    MC79L12ACDR2G IC REG LINEAR -12V 100MA 8SOIC onsemi

    Product Details


    100 mA Negative Voltage Regulators


    The MC79L00, A Series negative voltage regulators are inexpensive, easy−to−use devices suitable for numerous applications requiring up to 100 mA. Like the higher powered MC7900 Series negative regulators, this series features thermal shutdown and current limiting, making them remarkably rugged. In most applications, no external components are required for operation.

    The MC79L00 devices are useful for on−card regulation or any other application where a regulated negative voltage at a modest current level is needed. These regulators offer substantial advantage over the common resistor/Zener diode approach.

    Features

    • No External Components Required
    • Internal Short Circuit Current Limiting
    • Internal Thermal Overload Protection
    • Low Cost
    • Complementary Positive Regulators Offered (MC78L00 Series)
    • Pb−Free Packages are Available

    Specifications

    AttributeAttribute Value
    Manufactureronsemi
    Product CategoryLinear Voltage Regulators
    SeriesMC79L12
    PackagingAlternate Packaging
    Unit-Weight0.019048 oz
    Mounting-StyleSMD/SMT
    Package-Case8-SOIC (0.154", 3.90mm Width)
    Operating-Temperature0°C ~ 125°C
    Mounting-TypeSurface Mount
    Output-TypeFixed
    Supplier-Device-Package8-SOIC
    Voltage-InputDown to -35V
    Number-of-Outputs1 Output
    Current-Output100mA
    Voltage-Output-12V
    Regulator-TopologyNegative Fixed
    Voltage-Dropout-Typical1.7V @ 40mA
    Number-of-Regulators1 Regulator
    Current-Limit-Min-
    Maximum Operating Temperature+ 125 C
    Operating temperature range0 C
    PolarityNegative
    Output-Voltage- 12 V
    Input-Voltage-MAX- 35 V
    Output-Current100 mA
    Input-Voltage-MIN- 14 V
    Load-Regulation100 mV
    Package-CaseSOIC-8
    Line-Regulation250 mV
    Power Supply Ripple Rejection (PSRR)42 dB

    Functional compatible component

    Form,Package,Functional compatible component

    Manufacturer Part#DescriptionManufacturerCompare
    L79L12ACD13TR
    Power Circuits
    0.1A positive voltage regulatorsSTMicroelectronicsMC79L12ACDR2G vs L79L12ACD13TR
    LM79L12ACMX/NOPB
    Power Circuits
    Series 3-Terminal Negative Regulators 8-SOIC 0 to 70Texas InstrumentsMC79L12ACDR2G vs LM79L12ACMX/NOPB
    MC79L12ACPG
    Power Circuits
    Linear Voltage Regulator, 100 mA, 5 V, Negative Vout: -12 V; TJ = 0°C to +125°C, TO-92 (TO-226) 5.33mm Body Height, 2000-BLKBGON SemiconductorMC79L12ACDR2G vs MC79L12ACPG
    LM79L12ACM/NOPB
    Power Circuits
    Series 3-Terminal Negative Regulators 8-SOIC 0 to 70Texas InstrumentsMC79L12ACDR2G vs LM79L12ACM/NOPB
    MC79L12ACDR
    Power Circuits
    3-pin, 100mA, Fixed Negative Voltage Regulator 8-SOIC 0 to 125Texas InstrumentsMC79L12ACDR2G vs MC79L12ACDR
    MC79L12ACDG
    Power Circuits
    Linear Voltage Regulator, 100 mA, 5 V, Negative Vout: -12 V; TJ = 0°C to +125°C, SOIC-8 Narrow Body, 98-TUBEON SemiconductorMC79L12ACDR2G vs MC79L12ACDG
    MC79L12ACLP
    Power Circuits
    3-pin, 100mA, Fixed Negative Voltage Regulator 3-TO-92 0 to 125Texas InstrumentsMC79L12ACDR2G vs MC79L12ACLP
    MC79L12ABPG
    Power Circuits
    Linear Voltage Regulator, 100 mA, 5 V, Negative Vout: -12 V; TJ = -40°C to +125°C, TO-92 (TO-226) 5.33mm Body Height, 2000-BLKBGON SemiconductorMC79L12ACDR2G vs MC79L12ABPG
    MC79L12ACPRAG
    Power Circuits
    Linear Voltage Regulator, 100 mA, 5 V, Negative Vout: -12 V; TJ = 0°C to +125°C, TO-92 (TO-226) 5.33mm Body Height, 2000-REELON SemiconductorMC79L12ACDR2G vs MC79L12ACPRAG
    MC79L12ACPRPG
    Power Circuits
    Linear Voltage Regulator, 100 mA, 5 V, Negative Vout: -12 V; TJ = 0°C to +125°C, TO-92 (TO-226) 5.33mm Body Height, 2000-FNFLDON SemiconductorMC79L12ACDR2G vs MC79L12ACPRPG

    Descriptions

    Linear Voltage Regulator IC Negative Fixed 1 Output -12V 100mA 8-SOIC
    Standard Regulator Neg -12V 0.1A 8-Pin SOIC N T/R
    Linear Voltage Regulators 12V 100mA Negative
