Brand Name : | Texas Instruments |

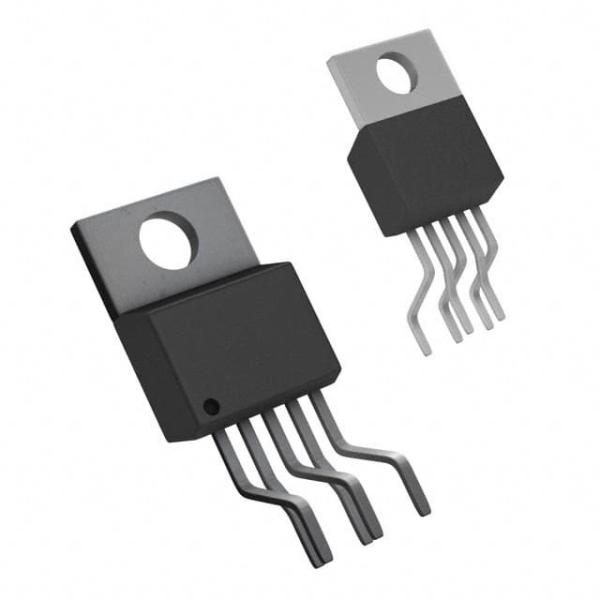

Model Number : | LM2991T/LF03 |
Price : | Based on current price |
Payment Terms : | T/T |
Supply Ability : | In stock |
Delivery Time : | 3-5 work days |
Attribute | Attribute Value |
---|---|
Manufacturer | Texas Instruments |
Product Category | Linear Voltage Regulators |
Series | LM2991 |
Packaging | Tube |
Unit-Weight | 0.105822 oz |
Mounting-Style | Through Hole |
Package-Case | TO-220-5 Formed Leads |
Operating-Temperature | -40°C ~ 125°C |
Mounting-Type | Through Hole |
Output-Type | Adjustable |
Supplier-Device-Package | TO-220-5 |
Voltage-Input | Down to -26V |
Number-of-Outputs | 1 Output |
Current-Output | 1A |
Voltage-Output | -3 V ~ -24 V |
Regulator-Topology | Negative Adjustable |
Voltage-Dropout-Typical | 0.6V @ 1A |
Number-of-Regulators | 1 Regulator |
Current-Limit-Min | 1.5A |
Maximum Operating Temperature | + 125 C |
Operating temperature range | - 40 C |
Output-Voltage | - 24 V to - 3 V |
Input-Voltage-MAX | 300 mV |
Output-Current | 1 A |
Input-Voltage-MIN | - 26 V |
Load-Regulation | 0.4 % |
Package-Case | TO-220-5 |
Ib-Input-Bias-Current | 700 uA |
Quiescent-Current | 5 mA |
Reference-Voltage | - 1.186 V |
Dropout-Voltage | 0.1 V at 100 mA 0.6 V at 1 A |
Dropout-Voltage-Max | 0.2 V at 100 mA 0.8 V at 1 A |
Line-Regulation | 0.04 %/V |
![]() |
